Home > PRODUCTS > UHF RFID Reader > Mid-Range Integrated UHF RFID > > 0-6Meter UHF Middle Range RFID Reader NR-R800

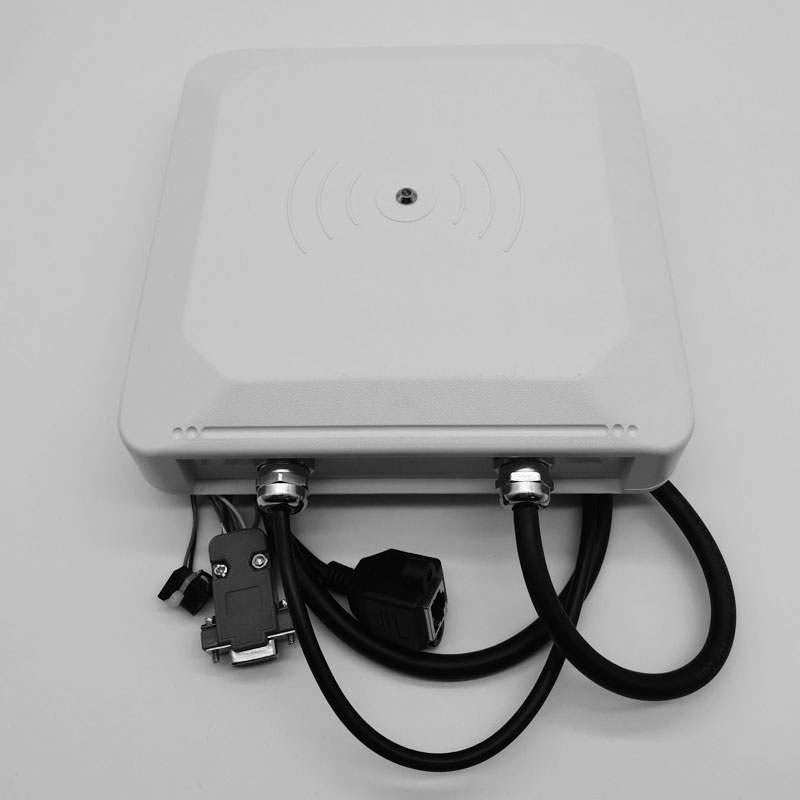

- Product Name:0-6Meter UHF Middle Range RFID Reader NR-R800
- Product Model:NR-R800
Cantact Us:
- Product Overview
Applications
- Production Line Management
- Digital Warehouse, Logistics System Management
- Asset Management
- Vehicle Checking, Personal Management
Item No |
|
Interface |
RS232,RS485,Wiegand,TCP/IP/WIFI ,4G |
Performance parameters |
|
Working Frequency |
902~928 MHz or 865~868MHz |
Protocol |
ISO18000-6C(EPC C1 GEN2) |
Radio frequency power |
0dBm~30dBm(Adjustable) |
Software & SDK |
DEMO and C#,VC,VB,Java,DELPHI, etc., |
Encryption |
Can be directly encrypted, copy prevention. |
Reading range |
stable reading range 5-8M(Depends on tag&environment) |
Industrial lightning protection |
6000V industrial lightning protection |
Low temperature protection |
Northeast,Northwest extremely cold region,low temperature protection |
Frequency modulation way |
Broad spectrum frequency hopping or fixed frequency |
Input/output port |
Two-way relay output(customized), one-way trigger input |
Antenna gain |
8dBi circular polarization |
Working way |
Buzzer |
Power |
12V/3A Adaptor |
Physical parameters: |
|
Item size |
190x190x50mm |
Net weight |
2.5KG |
Shell material |
ABS |
Working temperature |
-20℃~+65℃ |
Storage temperature |
-45℃~+95 |
