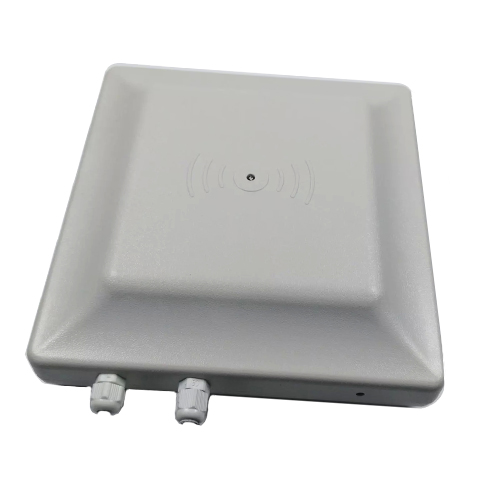

- Product Name:0-6meter Middle range UHF RFID Integrated Reader Multi-tags
- Product Model:NR-902
Cantact Us:
- Product Overview
The UHF integrated series reading equipment is a high-end integrated UHF RFID reader and writer product. Its design is equipped with the
UHF TM600 Reading and writing module and RFID antenna developed
by the company. The reading distance of the integrated equipment 9dbi antenna can reach 0~6 meters. The industry multi tag algorithm can identify tags at an extremely high speed. According to the needs of customers, the label can be encrypted, and other readers and writers are garbled to enhance confidentiality. In similar products, the performance is stable and the reading distance is long.
The equipment standard is integrated with RS232 and 100MB Ethernet communication interface.
UHF TM600 Reading and writing module and RFID antenna developed
by the company. The reading distance of the integrated equipment 9dbi antenna can reach 0~6 meters. The industry multi tag algorithm can identify tags at an extremely high speed. According to the needs of customers, the label can be encrypted, and other readers and writers are garbled to enhance confidentiality. In similar products, the performance is stable and the reading distance is long.
The equipment standard is integrated with RS232 and 100MB Ethernet communication interface.
| Working Frequency | 902～928 MHz(US) / 865~868MHZ(EU) |
| Interface: | |
| NR-902B | RS232,TCP/IP |
| NR-902A | RS232 |
| NR_902W | RS232,WIFI |
| NR-902G | RS232,GPRS |
| Gain | 8dbiCircular polarization |
| protocol | ISO18000-6C（EPC G2） |
| DEMO | C#，C++, Java， |
| Multi-tags reading | 200 pcs/times |
| Read and writable | Yes |
| Output Power | 30dbm(adjustable) |
| Interface | TCP/IP、RS232,WIFI, available |
| Input /output interface （ optional） | 1 trigger input and 2 relay outputs（Customized） |
| Industrial lightning protection | 6000V High voltage lightning protection |
| Special (optional) | Low temperature treatment in some code area |
| Reading distance | Stable 0-6M depend on environment |
| Operating temperature | -40℃~+65℃ |
| storage temperature | -45℃~+95℃ |
| Power | DC12V,3A |
| size | 220X220X50MM |
| weight | 2Kg |
