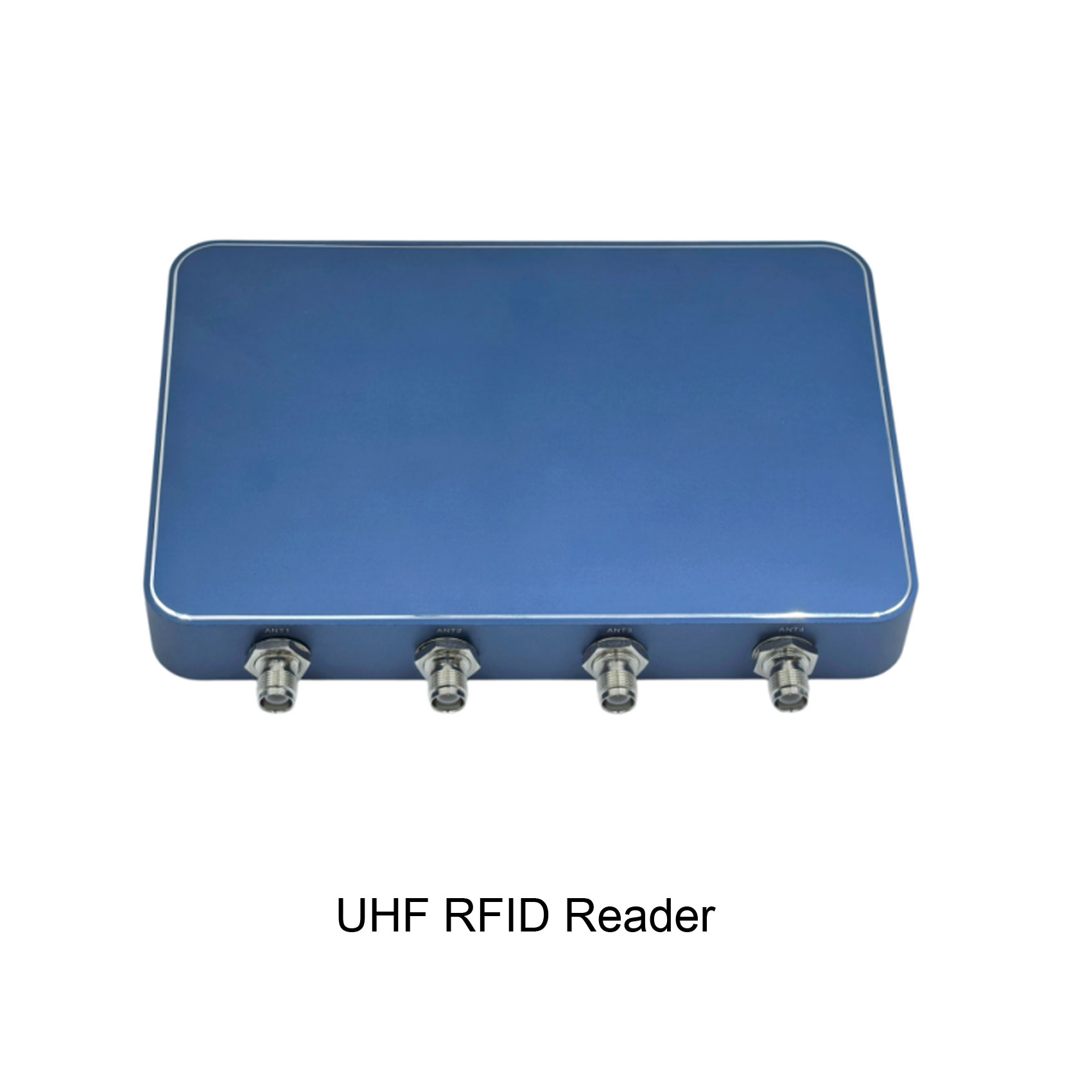

FR54A is a high-performance split-type UHF RFID reader developed by our company, featuring a next-generation Impinj E710 platform chip and fully supporting the ISO18000-6C/EPC C1G2 protocol. Its operating frequency covers FCC (902MHz～928MHz), ETSI (865MHz～868MHz), and CMIIT (920MHz～925MHz). The output power can be flexibly adjusted within the range of 5dBm to 33dBm (±1dB), fully meeting customers' needs for UHF tag inventory and read/write operations in various application scenarios.

The FR54A boasts a diversified interface configuration: including 1 RS232 interface, 1 RS485 interface, 1 RJ45 interface, 4 GPI interfaces, 4 GPO (relay) interfaces, and 1 Wiegand interface. This device features long-range identification, strong anti-interference capability, excellent protective performance, and high stability and reliability. Consequently, it can be widely applied in various scenarios such as warehouse logistics, asset management, vehicle management, industrial manufacturing, smart retail, anti-counterfeiting identification, ticket verification, and personnel credential checking.

Key Advantages

➢ Integrates the next-generation Impinj E710 series chip;
➢ Supports ISO18000-6C/EPC C1G2 protocol and Gen2X extended functions;
➢ Supports Frequency Hopping Spread Spectrum (FHSS) or fixed-frequency transmission modes;
➢ Features high-performance anti-collision identification algorithm, supporting multi-tag reading;
➢ Tag identification speed up to 1000 tags per second;
➢ Runs on a Linux operating system, providing a stable and open platform for advanced customization and application development.
➢ Powered by a Cortex-A7 @1.2GHz CPU with 256MB RAM and 8GB storage, offering enhanced local processing capability.
➢ Features 1 TOPS of computing power for edge processing tasks.

Application Scenarios

Industrial Automation & Manufacturing: Integrated into production lines for real-time parts tracking, work-in-progress monitoring, and automated tool management.

Warehouse & Logistics Management: Enables high-speed inventory counts, precise asset localization within storage areas, and automated sorting gateways.

Smart Parking & Vehicle Access Control: Manages vehicle identification for secure access, parking space allocation, and automated fee calculation.

Fixed Asset Management: Provides reliable, scheduled inventory checks for high-value equipment in facilities like data centers, laboratories, and libraries.

Custom IoT Gateway Solutions: Serves as a programmable edge device to filter, process, and forward RFID data to backend systems, reducing network load.

Specifications

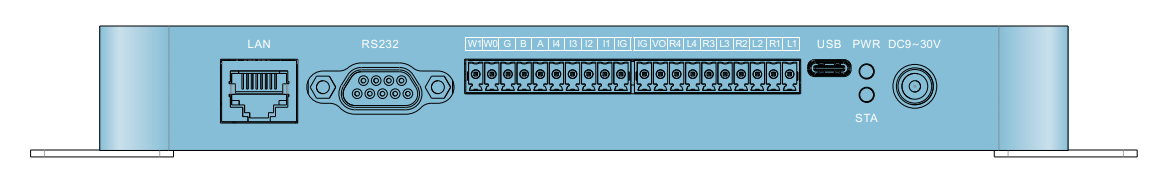

Interface definition

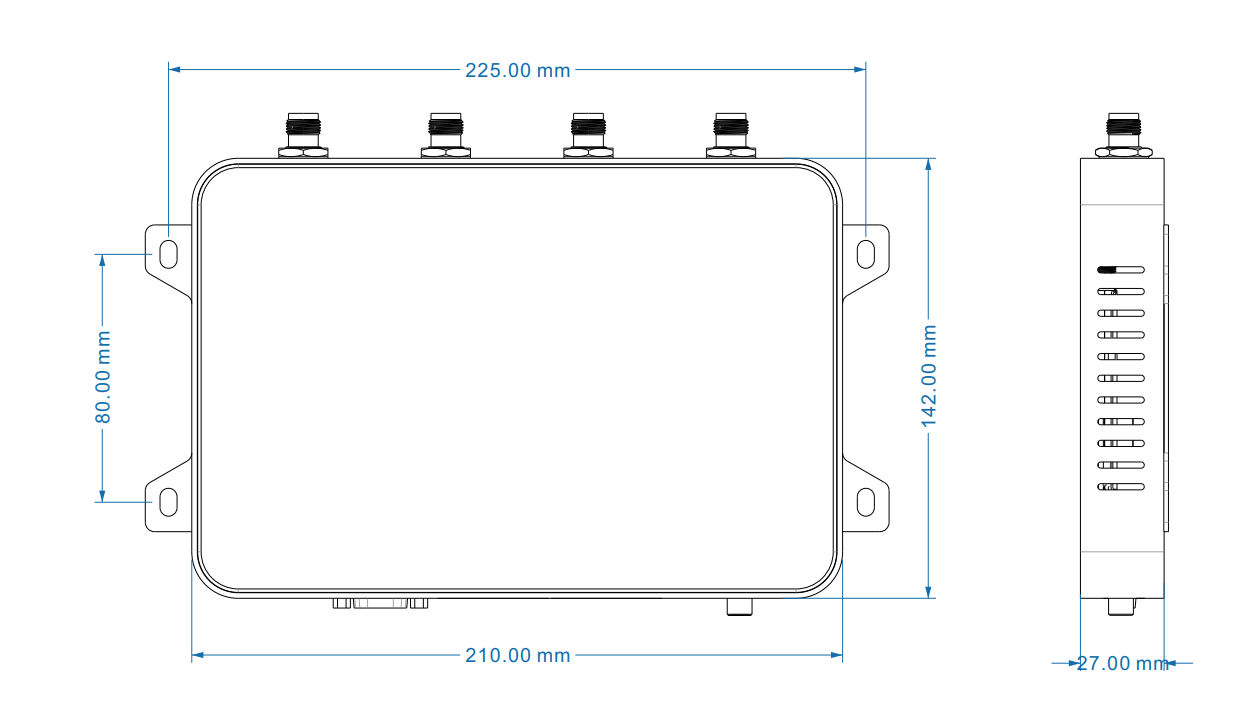

Product Dimensions
