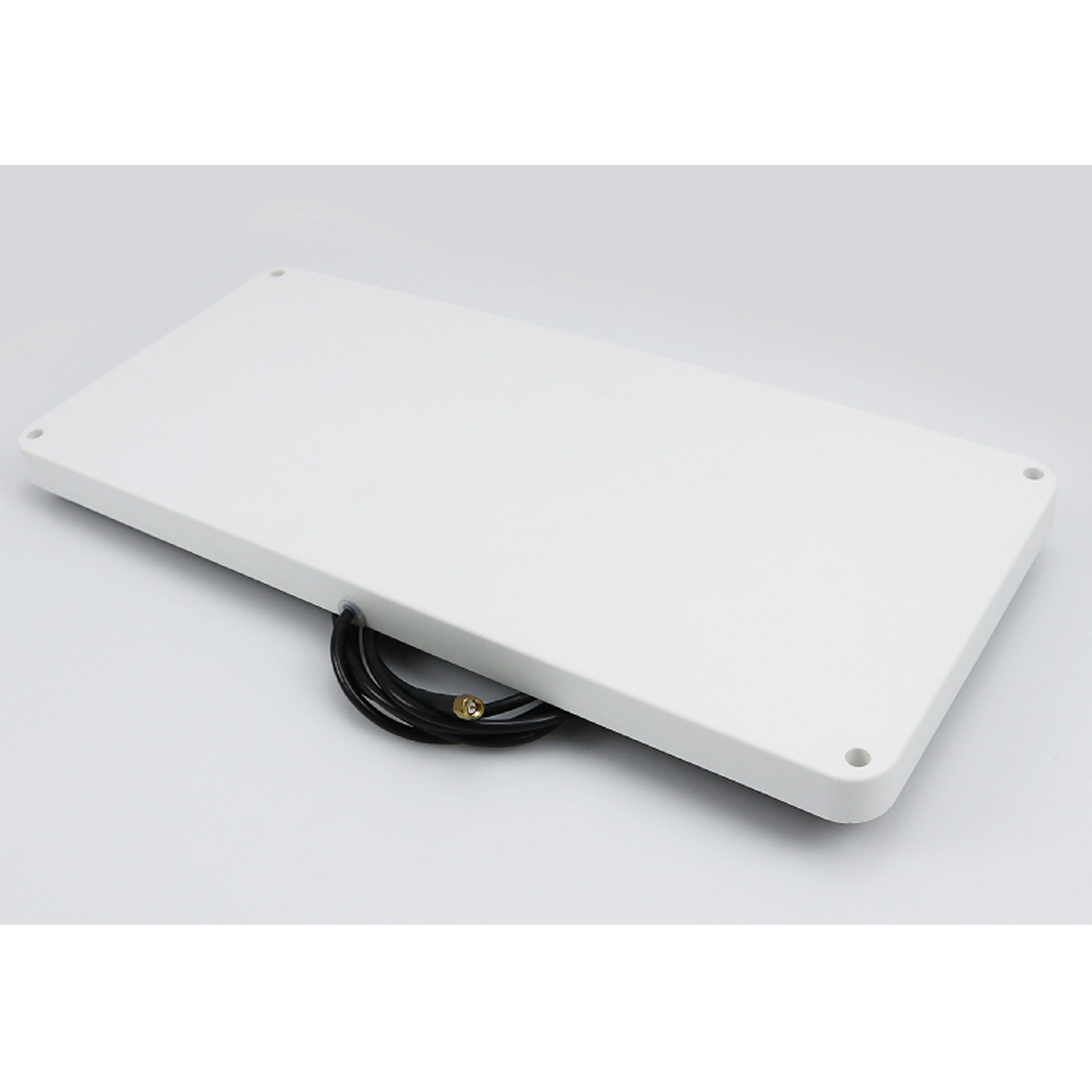

10Dbi UHF RFID antenna

SpecificationsFrequency Range(MHz)902-928Gain(dBi)10.5dBiBeam Width(°)Hor:36 Ver:70VSWR≤1.3Impedance(Ω)50PolarizationCircleaxial ratio(dB)≤2MAX.Power(W)50Lightning protection DC groundingMechanical SpecificationsConnectorSMA-JConnector positionSide drawDimension(mm)450*200*22mmAntenna weig

Model number：
Power：
Colour：
Dimension：
Weight：

CONTACT NOW down load to pdf

Product Details

Specifications
Frequency Range(MHz)	902-928
Gain(dBi)	10.5dBi
Beam Width(°)	Hor:36 Ver:70
VSWR	≤1.3
Impedance(Ω)	50
Polarization	Circle
axial ratio(dB)	≤2
MAX.Power(W)	50
Lightning protection	DC grounding

Mechanical Specifications
Connector	SMA-J
Connector position	Side draw
Dimension(mm)	45020022mm
Antenna weight(kg)	0.9
Radome material	ABS
Radome color	white
Operating temperature(℃)	-40～55
