13.56Mhz RF4 RFID/NFC Tag With PCB Antenna

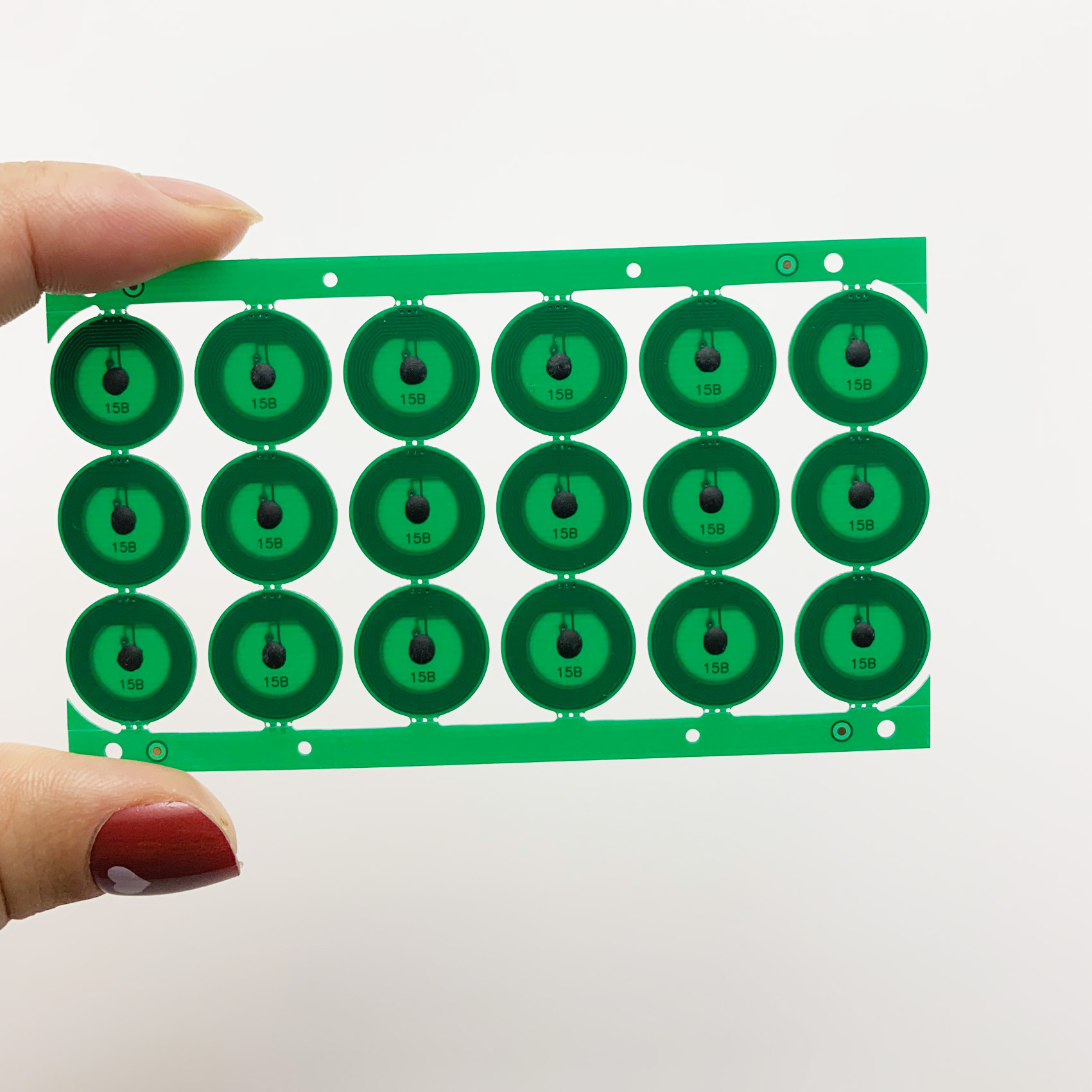

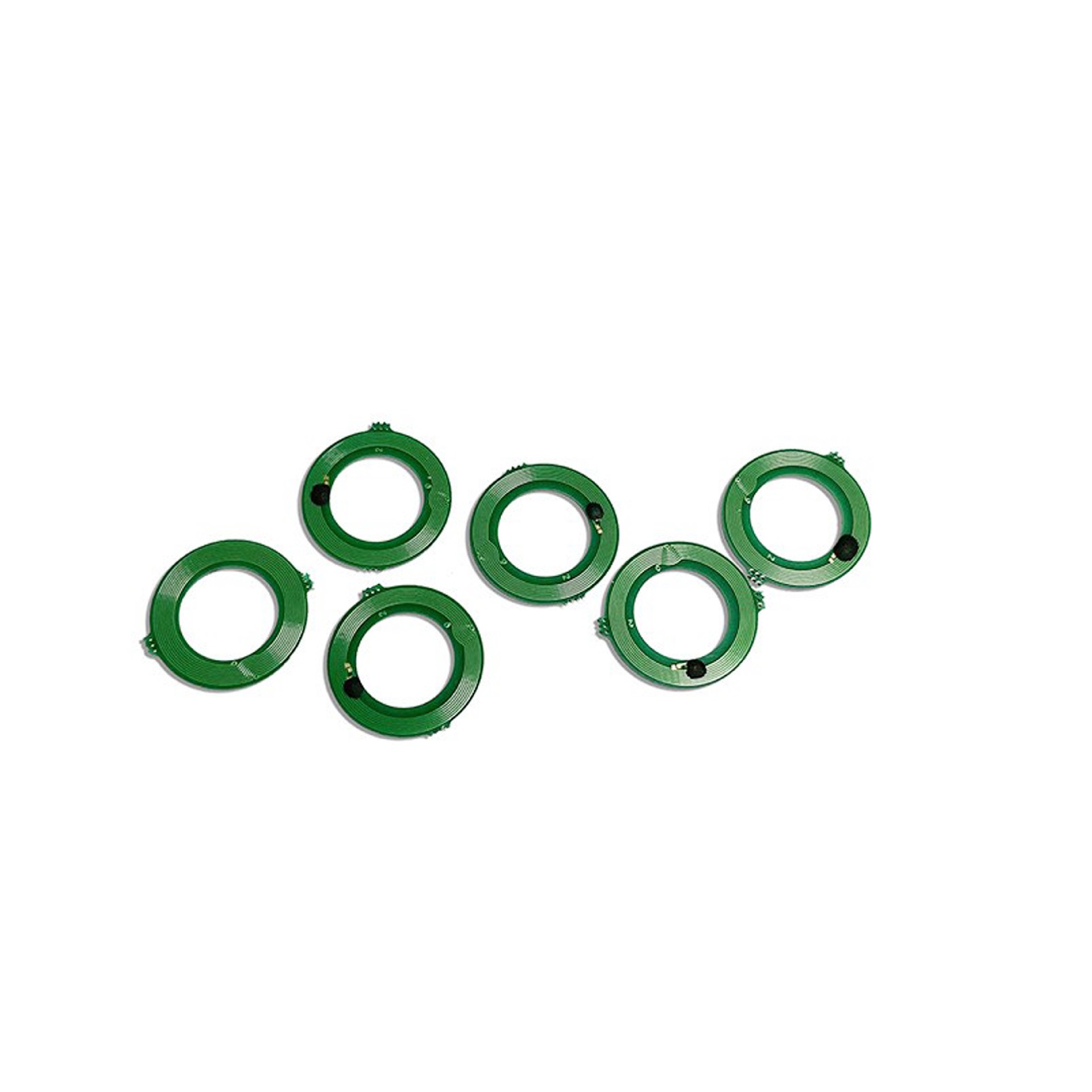

PCB Tag is a type of semi-finished RFID tag product that allows customers to perform further processing. The customer can insert it into a plastic housing or embed it into the intended item. This provides a versatile RFID option for a more flexible application.

Model number：
Power：
Colour：
Dimension：
Weight：

CONTACT NOW down load to pdf

Product Details

Item	PCB Tag
Material	Hard PCB
Chip	NTAG213 (ISO14443A) 13.56Mhz
Memory	144byte
More NFC Chip available	NTAG213,NTAG215,NTAG216,Ultralight EV1,ICODE SLIX Mifare classic 1K , etc
Diamension	Circle:10MM,12MM ,15MM,20MM,25MM etc Square:1010MM,1515MM,2020MM etc Rectangle:812MM,1015MM , 1218MM etc
Thickness	2-3MM
Reading distance	0-100MM
Operating Temperature	-25ºC to +85ºC
Anti-metal layer	pls let us know if the tag work on metal surface,we will add anti-metal layer for you
Logo	with logo printing
Performance	Waterproof and High temperature resistant
