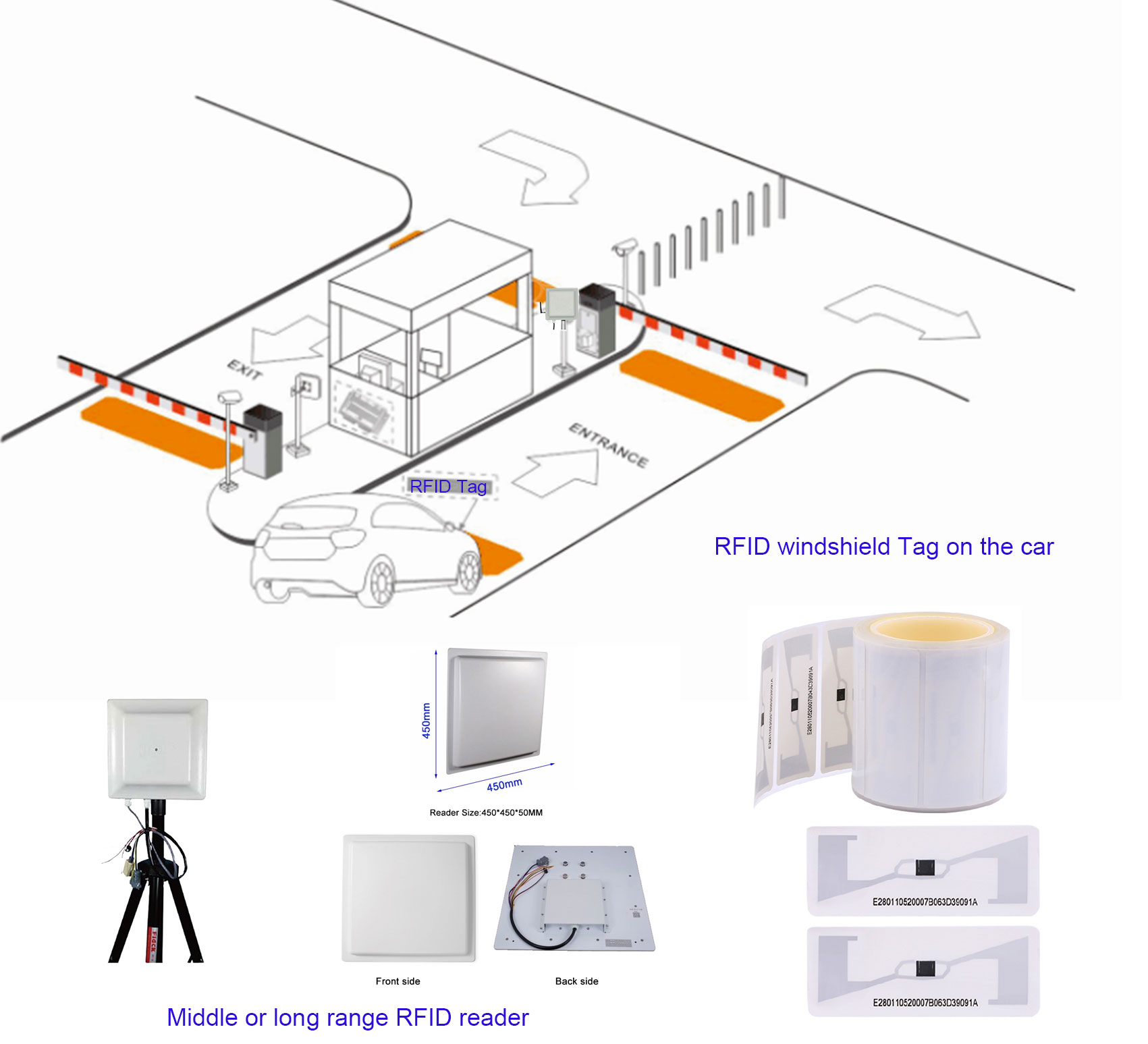

A UHF  RFID parking system uses long-range readers (typically operating at 860–928 MHz) and vehicle-mounted tags to automate gate entry. As a car approaches, the reader scans a windshield sticker or tag from 3 to 15 meters away,

 instantly triggering the parking barrier to open without requiring the driver to stop or roll down a window.

Core System Components:

UHF Reader & Antenna: Mounted on a pole or wall at the lane entrance, featuring weather-resistant housing (IP55 to IP67 ratings).

RFID Tags / Windshield Stickers: Passive or semi-passive adhesive tags placed on the inside or outside of the vehicle's windshield.

Access Controller / Panel: Validates the read tag ID against an authorized database via Wiegand, RS485, or TCP/IP connections.Barrier Gate: Receives a relay signal from the system to lift once a valid ID is confirmed.

Key BenefitsNon-Stop Flow:

 Eliminates traffic queues during peak hours by reading credentials at vehicular speeds.

Weatherproof Convenience: Drivers do not need to open windows in rain or cold weather to tap cards.

High Security: Prevents unauthorized vehicle entry and supports encrypted tag chips (like AES) to stop cloning.

Easy Integration: Connects smoothly with standard parking management software and existing gate barrier hardware.
